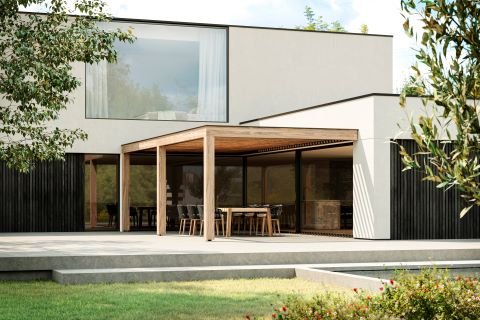

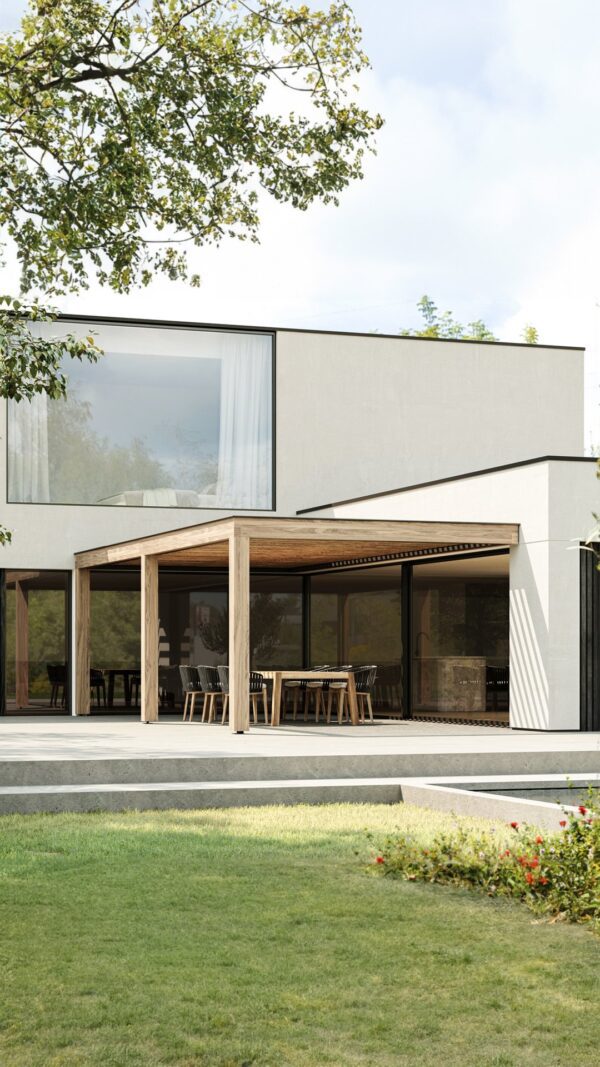

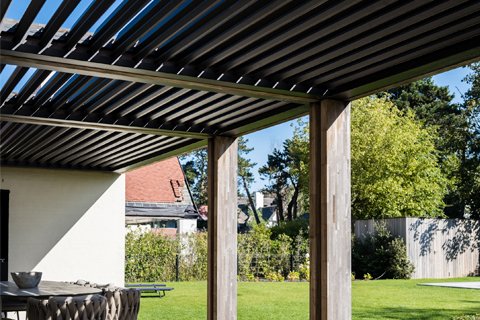

Carpentier Motorised Wood Louvre System

Enquire for pricing

Description

Belgium, known for its rich tradition in high-quality wood craftsmanship, brings us the innovative Carpentier Motorised Wood Louvre System—a perfect blend of style and functionality for any home desiring the timeless beauty of wood. This system not only enhances the aesthetic appeal of your home but also provides a practical solution for weather protection and privacy.



Design and Specifications

Posts and Beams: The framework consists of sturdy posts measuring 182 x 182 mm and beams at 240 x 80 mm, designed to blend seamlessly with various architectural styles.

Dimensions: The louvres can extend up to 4 meters in length, with the system capable of spanning up to 5 meters in width. The minimum height is set at 2.4 meters, ensuring adaptability to different installation environments.



Weight Specifications:

Posts: Each post weighs 44 kg, providing robust support and stability.

Louvres: Weighing 4 kg per square meter, the louvres offer durability without being cumbersome.

Frame: Adds an additional 12 kg per square meter, crafted to endure the elements while maintaining structural integrity.

Adaptability: The system can be installed on existing walls, allowing for retrofitting into your current setup without significant structural changes.

Modular Design: For covering larger areas, multiple louvre roofs can be combined seamlessly, providing extensive coverage without sacrificing aesthetic unity.

Louvre Functionality

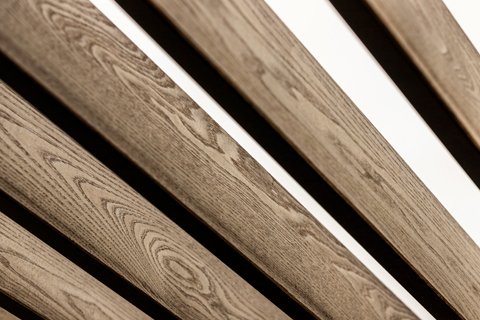

The louvres are spaced 155 mm apart and designed to interlock when closed, providing a seamless look and enhanced protection from rain. Each louvre is equipped with a slight slope of 1 degree, optimizing water runoff. This is further supported by an innovative water runoff channel integrated within the post itself, ensuring that water dispersal is both efficient and unobtrusive.

Additionally, the louvres are protected by an aluminum profile on the upper edge, which not only extends the life of the wood but also adds an extra layer of weather resistance.

Motorization and Control

At the heart of the Carpentier system is its motorization, powered by the Linak LA25 motor. Known for reliability, this motor allows the louvres to be adjusted quietly and smoothly. Control of the louvre positions is at your fingertips either through a remote control or a smartphone app, blending traditional wood aesthetics with modern convenience.

Aesthetic Appeal



The Carpentier Motorised Wood Louvre System is not just about functionality; it's a statement of style. Whether you're looking to create a cozy outdoor living area or enhance the privacy and comfort of an existing space, this system provides a solution that does not compromise on aesthetics. The natural wood finish offers a warm, inviting look that is both luxurious and down-to-earth, adaptable to both contemporary and traditional designs.

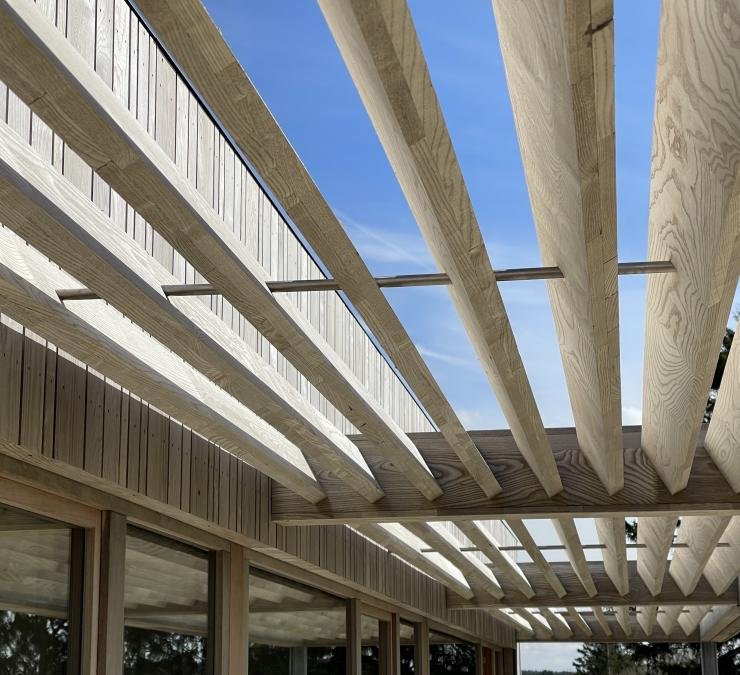

Constructed entirely from thermal ash, a sustainable and high-quality alternative to tropical hardwood, the Motorised Louvre Wood Pergola offers unmatched stability and durability, ideal for New Zealand's diverse climates. Each component is carefully crafted to ensure a seamless blend of nature with technology. The wooden slats are designed to withstand the elements, while an aluminium top mechanism ensures smooth operation.



Designed for Perfection

The pergola is delivered in smart ready-made kits, specifically tailored for easy and quick assembly by carpenters and wood professionals. This approach not only saves time but also transforms outdoor spaces without the usual hassle of long construction periods.

Uniquely Minimalist

True to Carpentier’s hallmark of minimalist design, the Motorised Louvre Wood Pergola stands out by showing only wooden parts – no plastic in sight. This design philosophy not only enhances the natural look but also integrates effortlessly into any existing garden or terrace setup.

Advanced Features

Control the ambiance with a touch of a button through a remote control or connect it to your home automation system for ease of use. The built-in rain and wind sensors automate the adjustments needed during unpredictable weather, ensuring comfort and protection. Optional mood lighting can transform your evenings, creating a perfect setting for relaxation or entertainment.

Environmentally Friendly

The choice of thermal ash not only guarantees durability and beauty but also represents Apollo NZ's commitment to environmental sustainability. This wood selection is an eco-friendly alternative that does not compromise on quality or performance.

Versatile Installation Options

Whether you are looking to expand your current living space or add a standalone feature in your garden, the Motorised Louvre Wood Pergola is customizable to fit your needs. It offers flexibility in design with various options for side elements, including glass walls, fixed wooden side walls, or wooden shutters with movable slats.
