Description
If you're looking for a louvre roof system that offers durability, elegance, and outstanding value—without sacrificing quality—look no further.

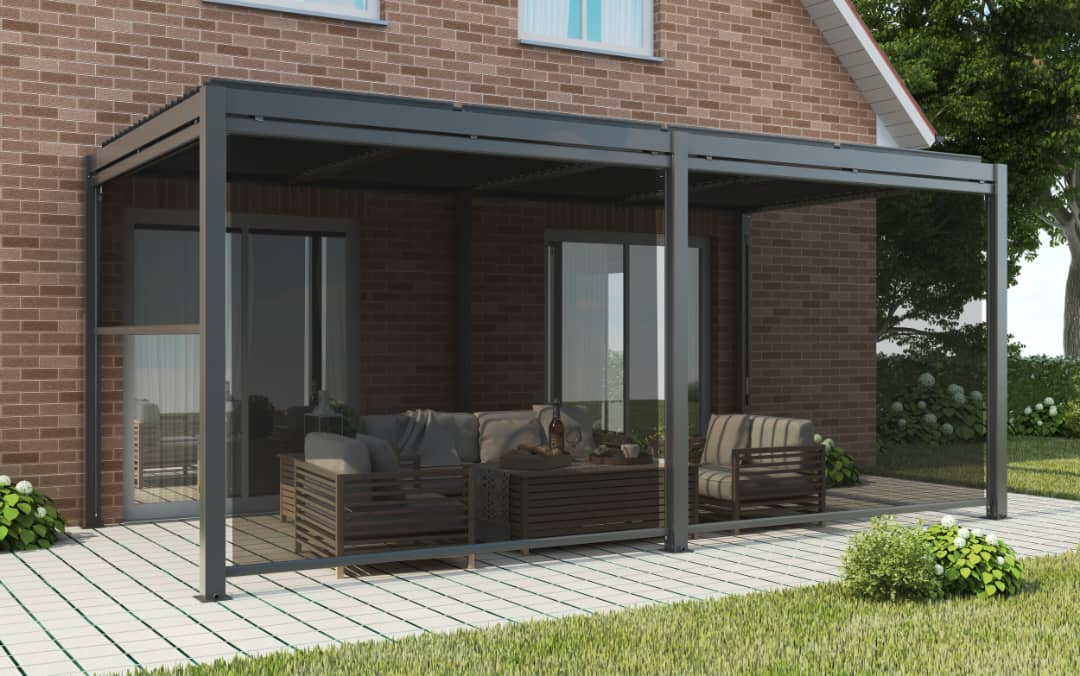

The Cerberus Standard Louvre System from Apollo NZ offers premium-grade materials, superior craftsmanship, and a lifetime manufacturing warranty, now available in manual or motorised versions.
Built with true flexibility in mind, this system provides a cost-effective, premium outdoor solution suited for a wide range of residential and commercial applications.
Engineered to Last: Premium Build Without the Premium Price Tag
This is not your average pergola kitset. While many entry-level louvre systems on the market compromise on materials and structural strength, Apollo NZ’s Cerberus Standard is designed to outlast and outperform at every level.
Key Structural Specifications:
Frame Material: 6063-T5 Aluminium – Strong, corrosion-resistant, and ideal for New Zealand’s outdoor environments
Beam Size: 120 x 45 x 1.5mm
Column Size: 100 x 100 x 1.5mm
Louvre Blade Size: 30 x 150 x 0.8mm
Fixed Height: 2.3m
Connections: 304 stainless steel standard – upgrade to 316 stainless steel available for coastal or high-exposure areas
Unlike many entry-level offerings, these dimensions are usually found in high-end louvre systems, making the Cerberus Standard one of the best-value aluminium pergola systems available today.

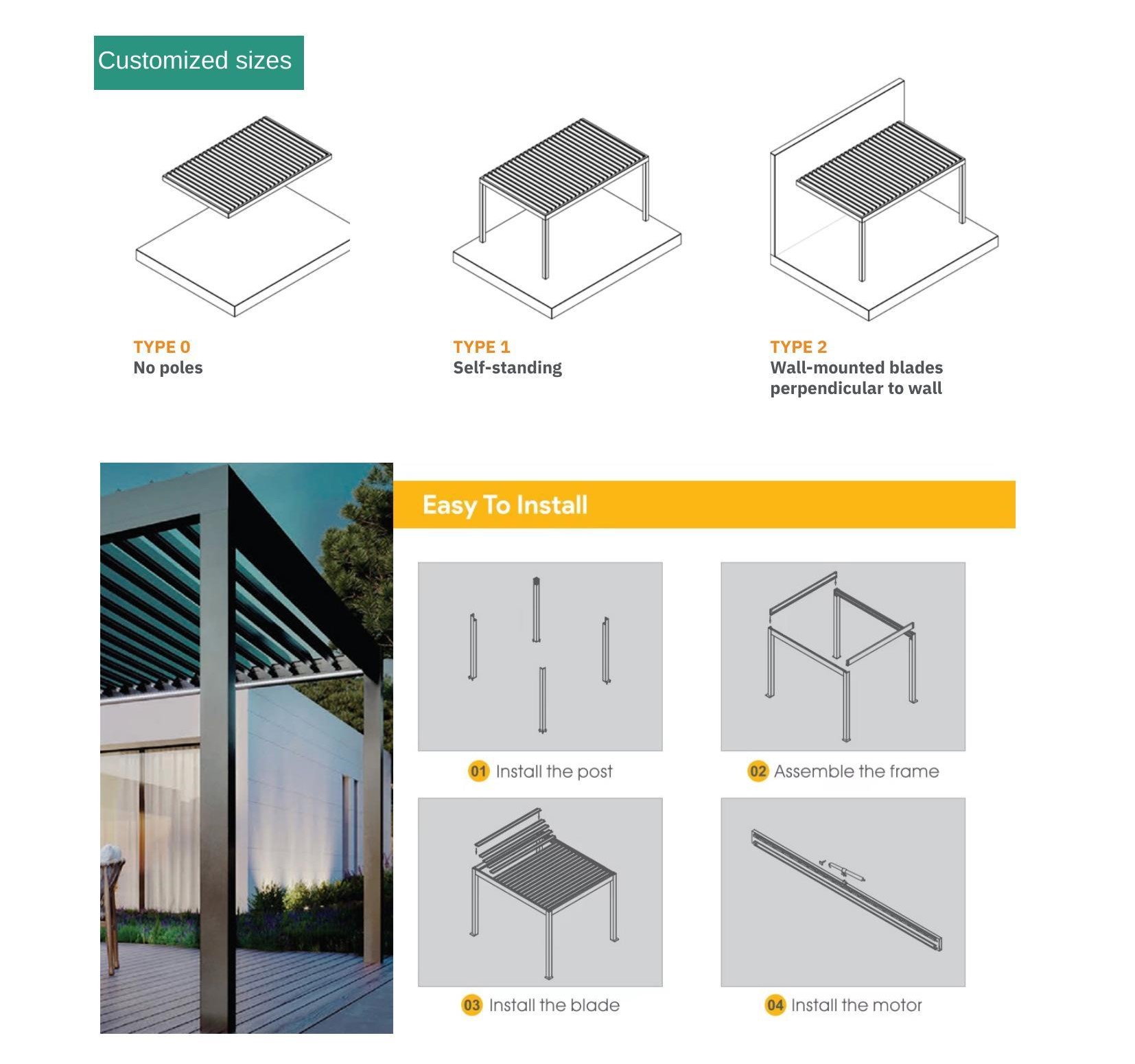

Fully Made-to-Measure: Your Size, Your Way
While we offer a range of standard sizes to suit common outdoor spaces, every system is now made to measure.
You can specify almost any width and depth you require—tailored precisely to your project.
Important Notes:
Height remains fixed at 2.3 metres
Posts are placed approximately every 4 metres for optimal support and clean design
This ensures a truly custom fit for patios, courtyards, cafés, restaurants, and more.

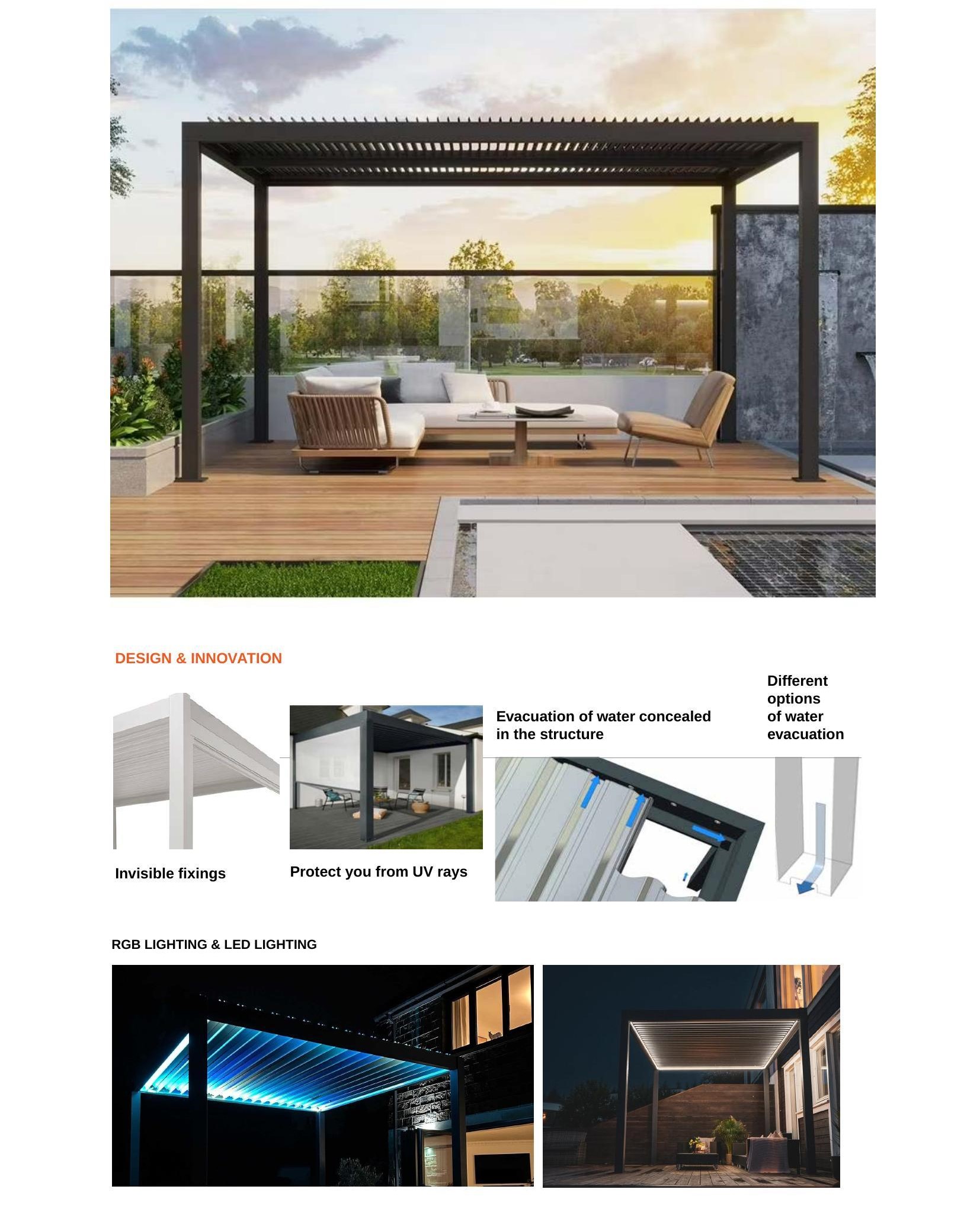

Integrated Gutters and Beams – A Rare Feature at This Price
The Cerberus Standard features integrated gutters and hidden drainage as standard.
This clean, all-in-one design ensures:
Sleeker architectural finish
Superior water management
Fewer parts for quicker installation
Lower ongoing maintenance
Simple Manual or Convenient Motorised Operation
Depending on your preferences and site conditions, you can choose:
Manual Crank Handle Operation: No motors, no electrical wiring—ideal for simplicity and reliability

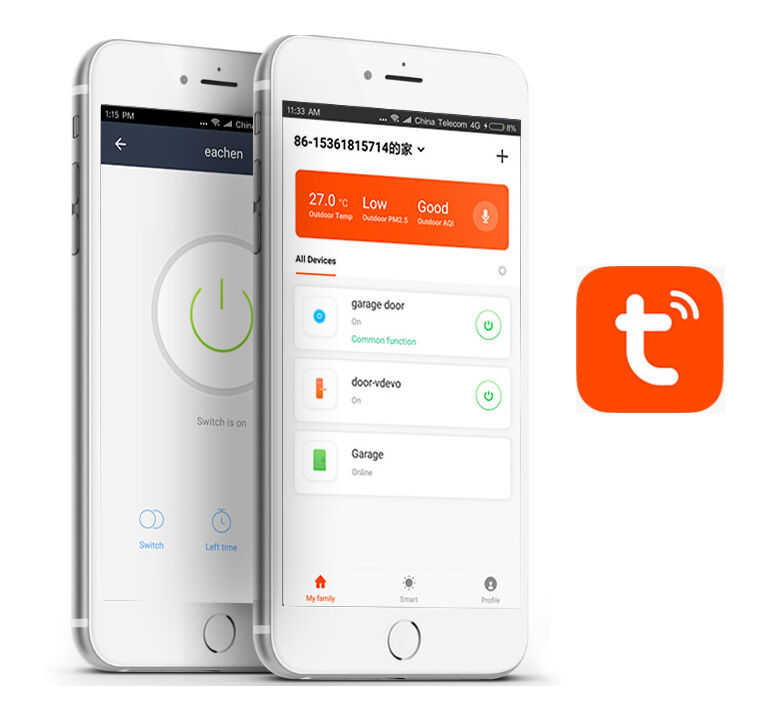

Motorised Operation: Seamless control at the push of a button, perfect for premium residential projects and commercial spaces
Both options offer effortless control over sunlight, airflow, and rain protection.

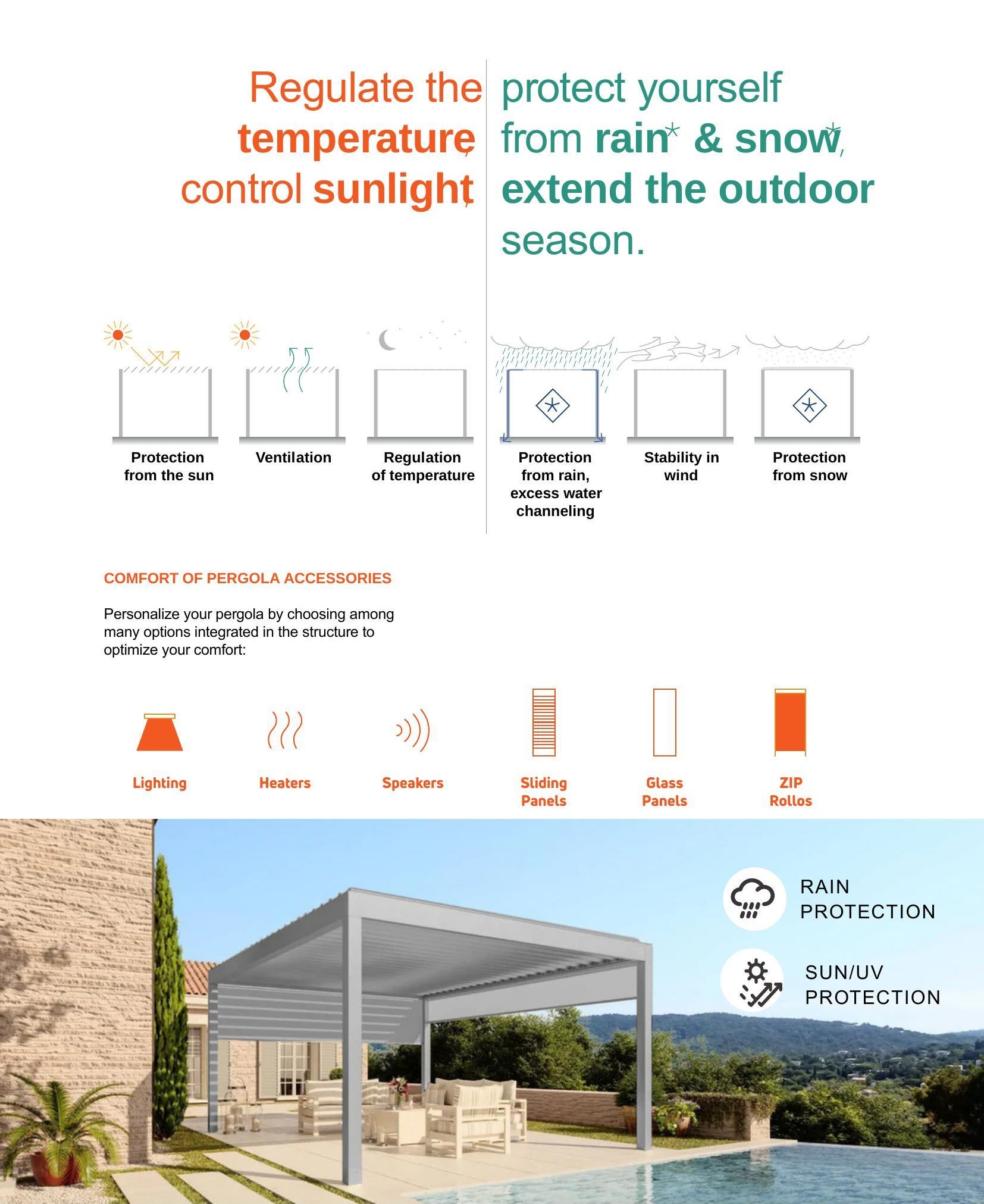

Built for New Zealand Conditions – Rain, Wind, and Snow
Designed to withstand New Zealand’s variable weather, the Cerberus Standard provides strength and peace of mind year-round.
Weather Performance:
Wind Rating: Up to 140 km/h
Rainfall Drainage: 0.04–0.05 L/s/m²
Snow Load Capacity: Up to 120 kg/m²
Standard Sizes and Pricing (Fully Custom Sizes Also Available)
Popular standard sizes and pricing:
| Size | Manual (plus GST) | Motorised (plus GST) |
|---|---|---|
| 3 x 2m | $1,560 | $1,620 |
| 3 x 3m | $2,340 | $2,430 |
| 4 x 3m | $3,120 | $3,240 |
| 4 x 4m | $4,160 | $4,320 |
| 5 x 3m | $3,450 | $4,050 |
| 5 x 4m | $4,600 | $5,400 |
| 5 x 5m | $5,750 | $6,750 |
| 6 x 2m | $2,760 | $3,250 |
| 6 x 3m | $4,140 | $4,900 |
| 6 x 4m | $5,520 | $6,480 |
| 6 x 5m | $6,900 | $8,100 |
| 6 x 6m | $8,280 | $9,720 |
| 7 x 3m | $4,830 | $5,670 |
| 7 x 4m | $6,450 | $7,560 |
| 8 x 3m | $5,520 | $6,480 |
| 8 x 4m | $7,360 | $8,650 |
| 9 x 3m | $5,550 | $7,290 |
| 9 x 4m | $5,520 | $7,290 |
| 9 x 5m | $10,350 | $12,150 |
| 10 x 3m | $6,900 | $8,100 |
| 10 x 4m | $9,200 | $10,800 |
Notes:
All prices are supply-only, excluding GST and delivery.
Height fixed at 2.3m.
Posts approximately every 4 metres.
Fully custom sizes available on request.

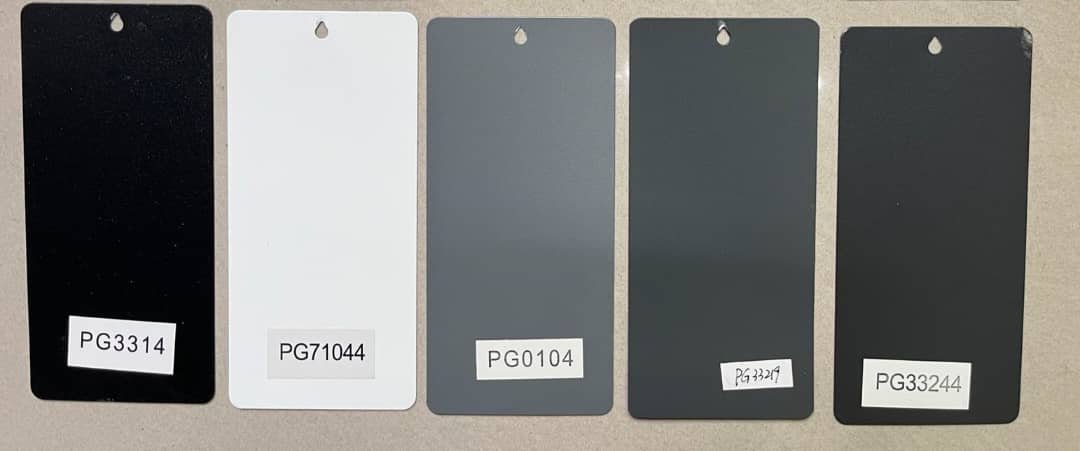

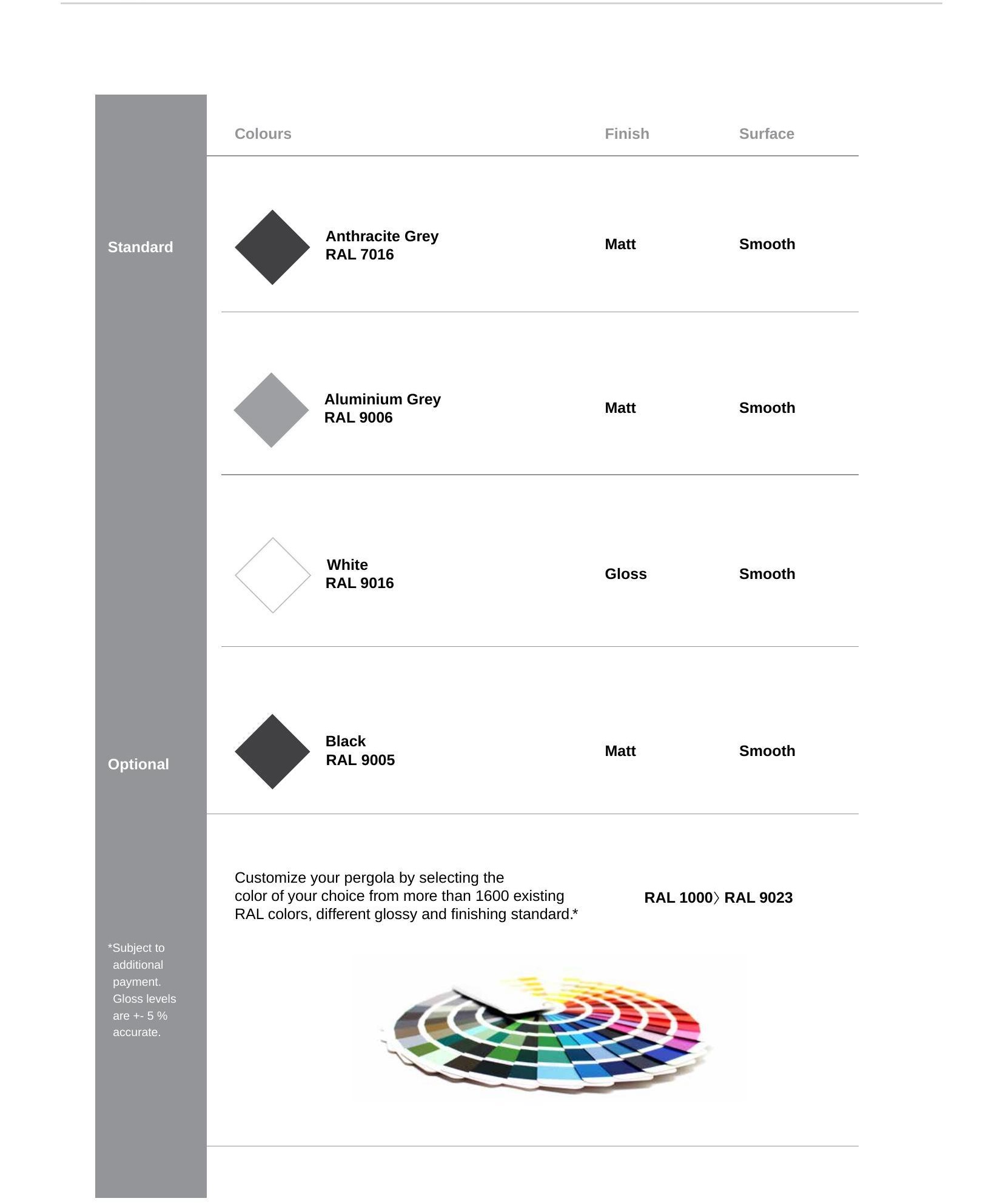

Colour Options to Suit Every Space
Standard Colours:
Black
Grey
White
Optional Custom Colours (surcharge applies):
Flaxpod
Ironsand
Mix-and-match options available for frame and blade colours to create a more tailored and dynamic design.
Optional Add-Ons for Enhanced Outdoor Living
Complete your outdoor area with optional accessories, available upon request:

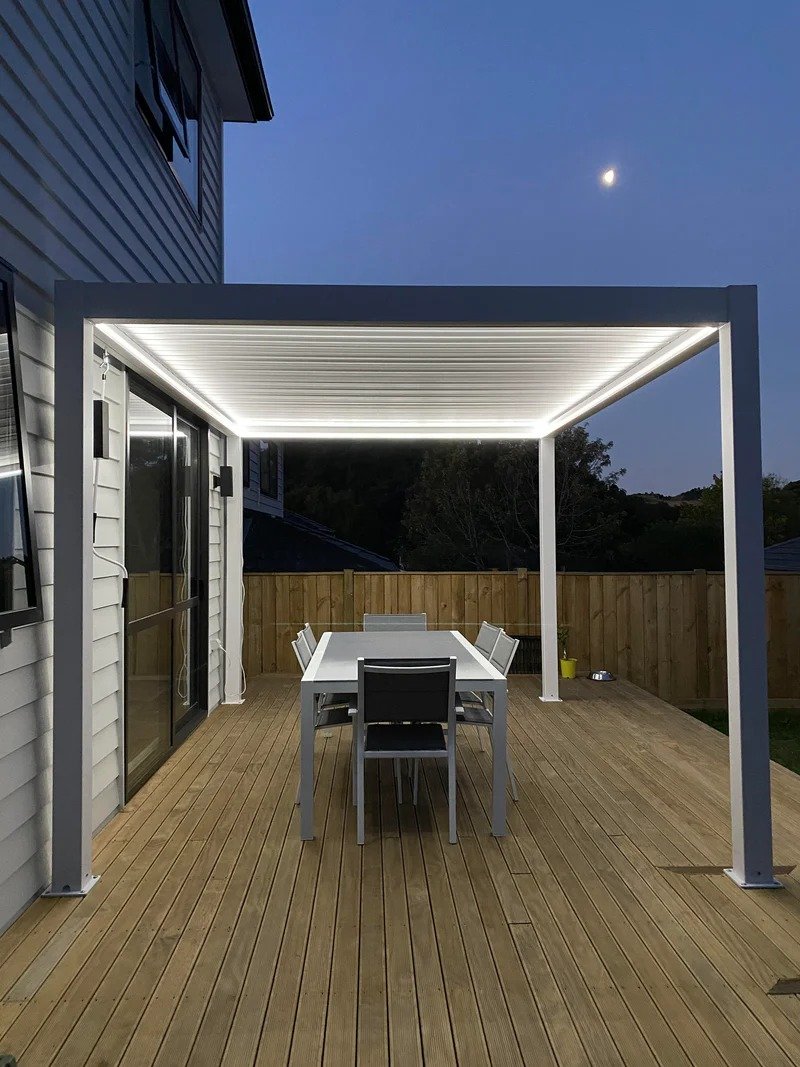

RGB or Standard Outdoor Lighting

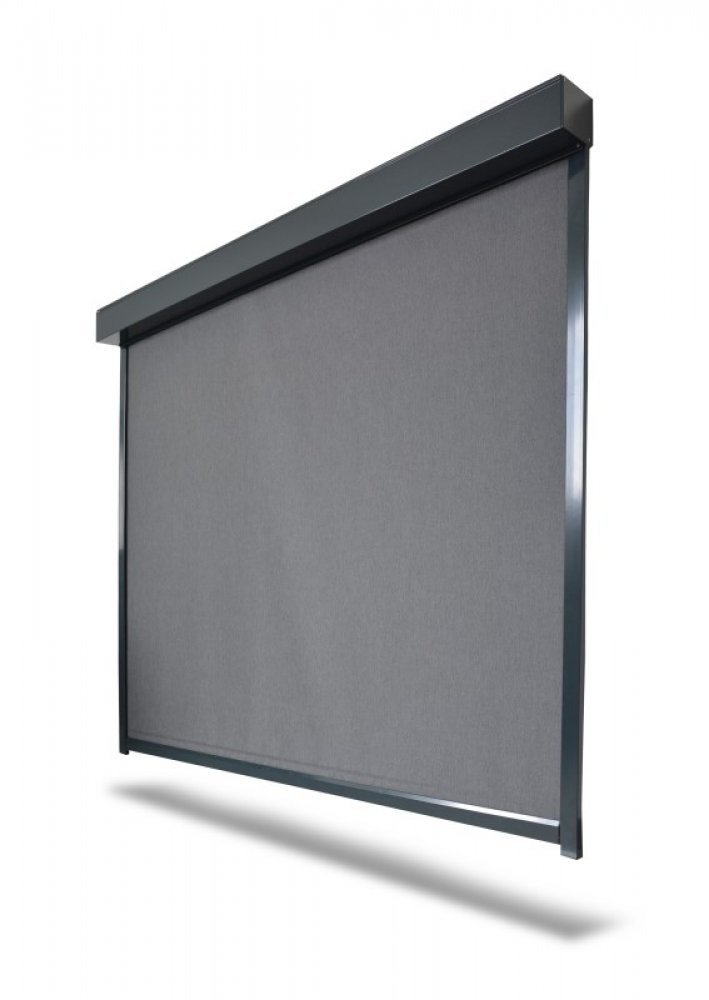

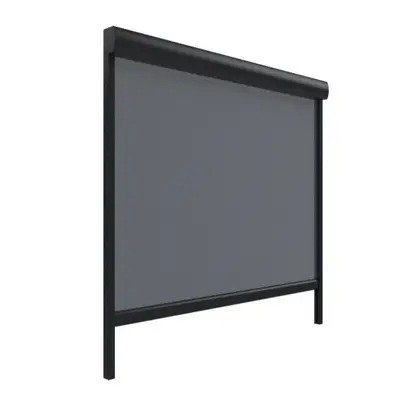

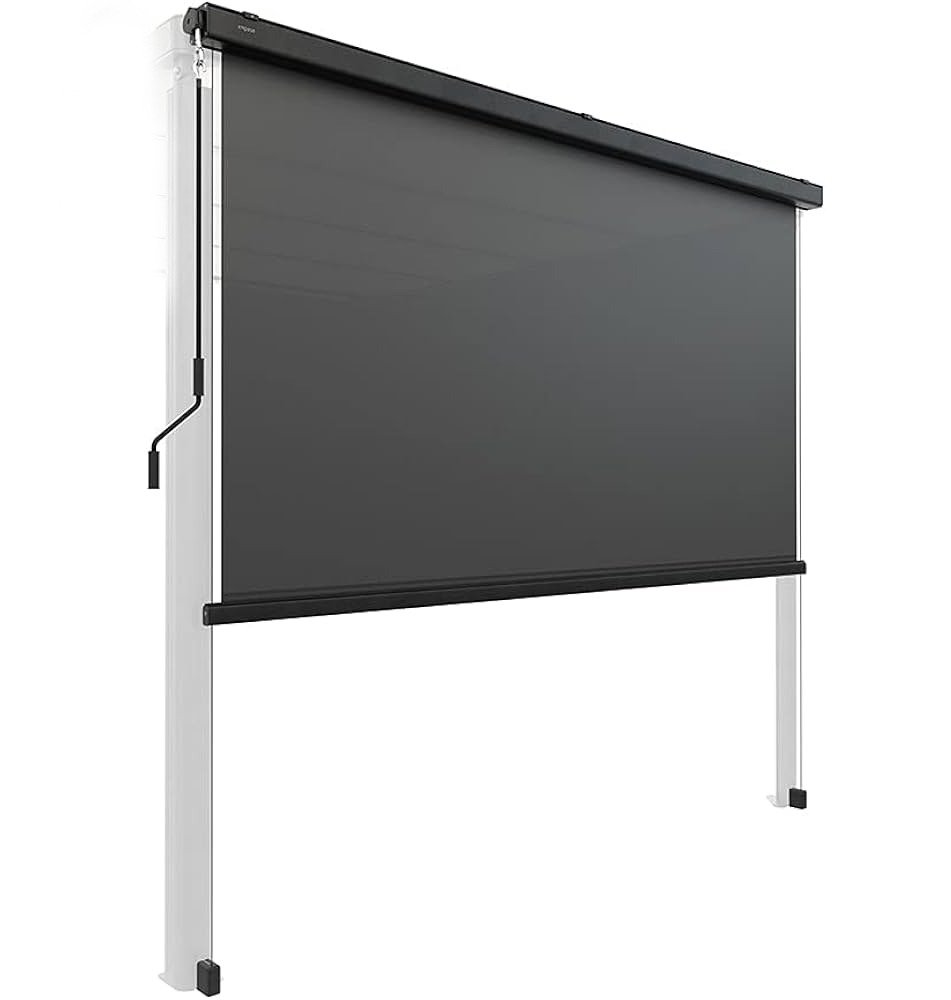

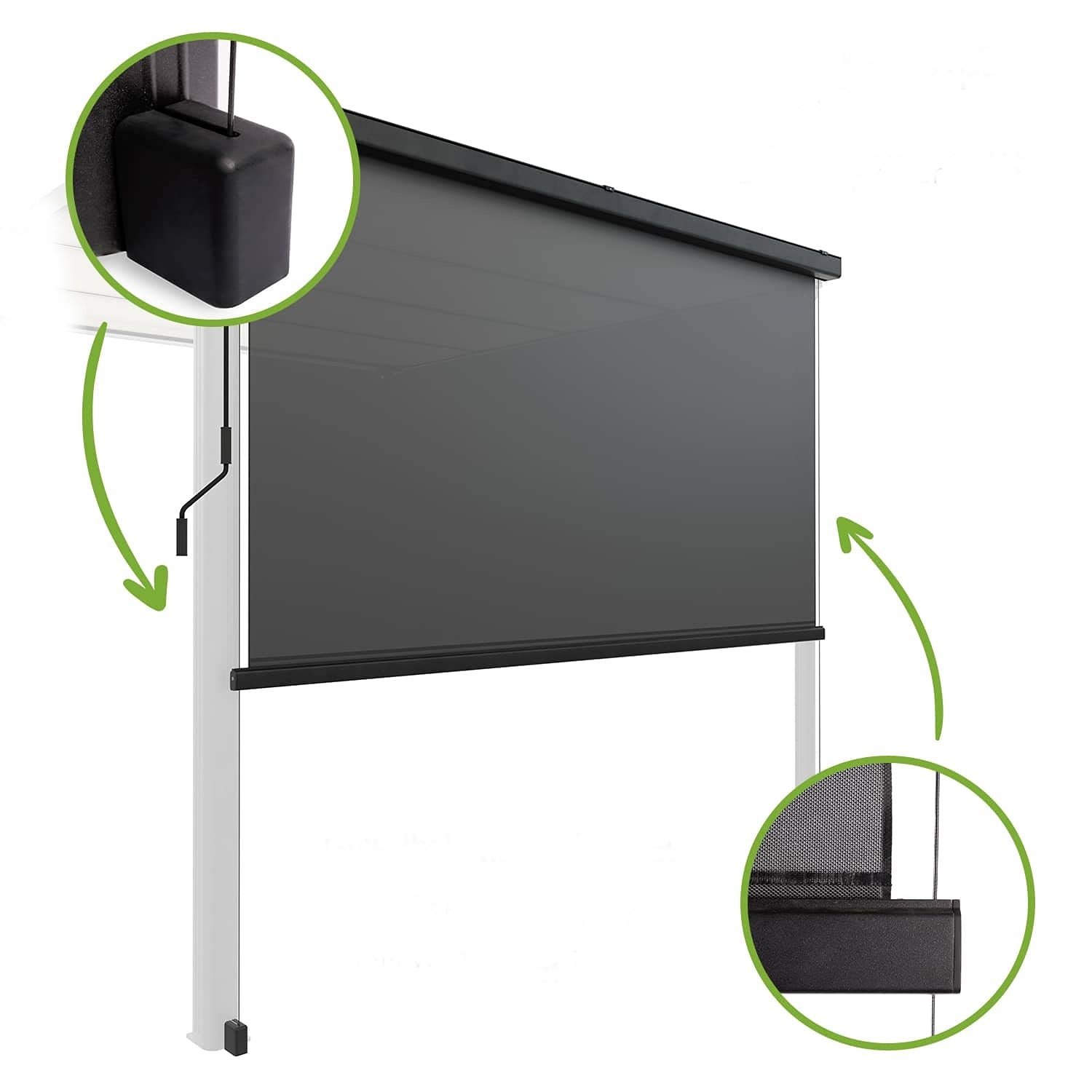

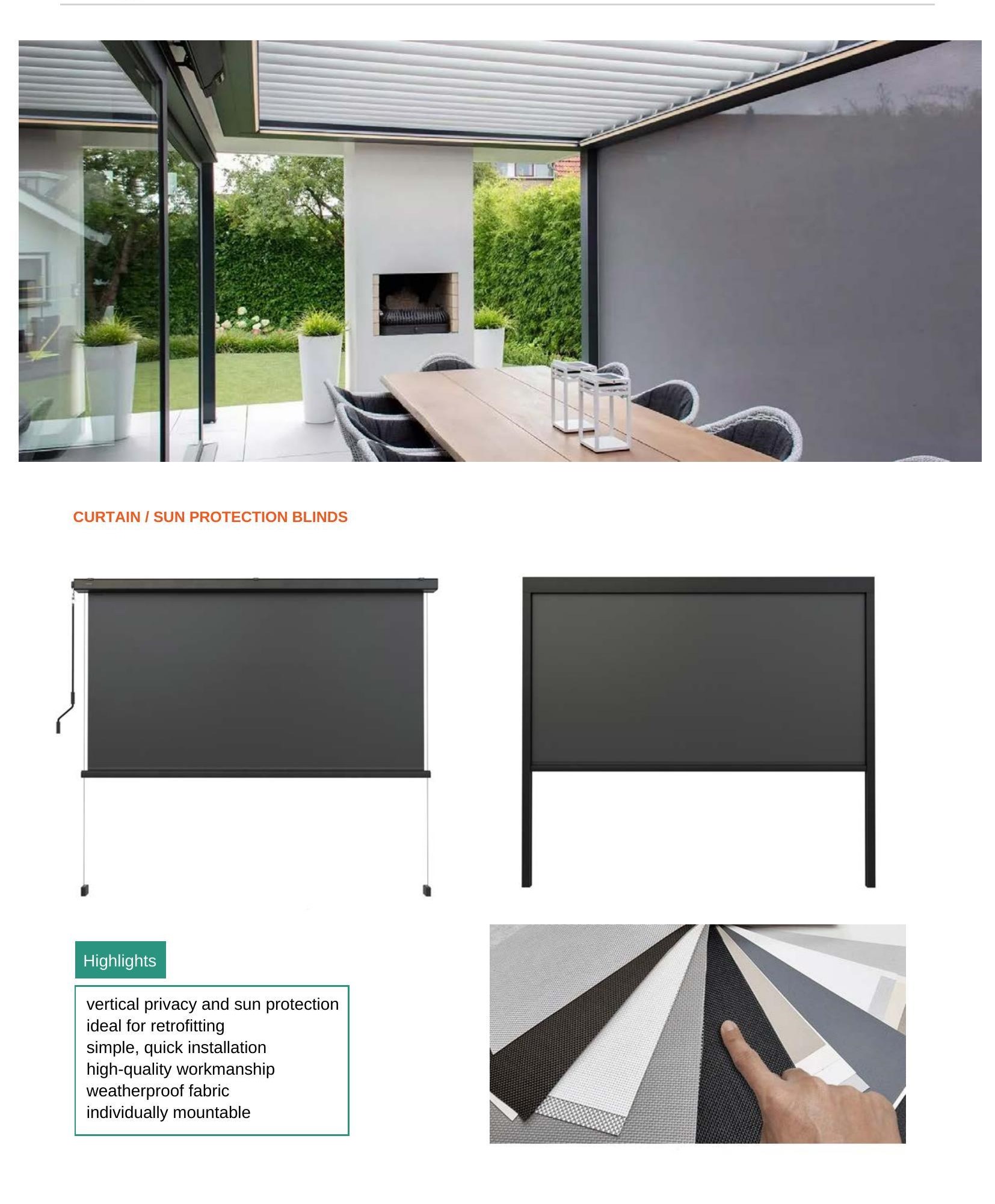

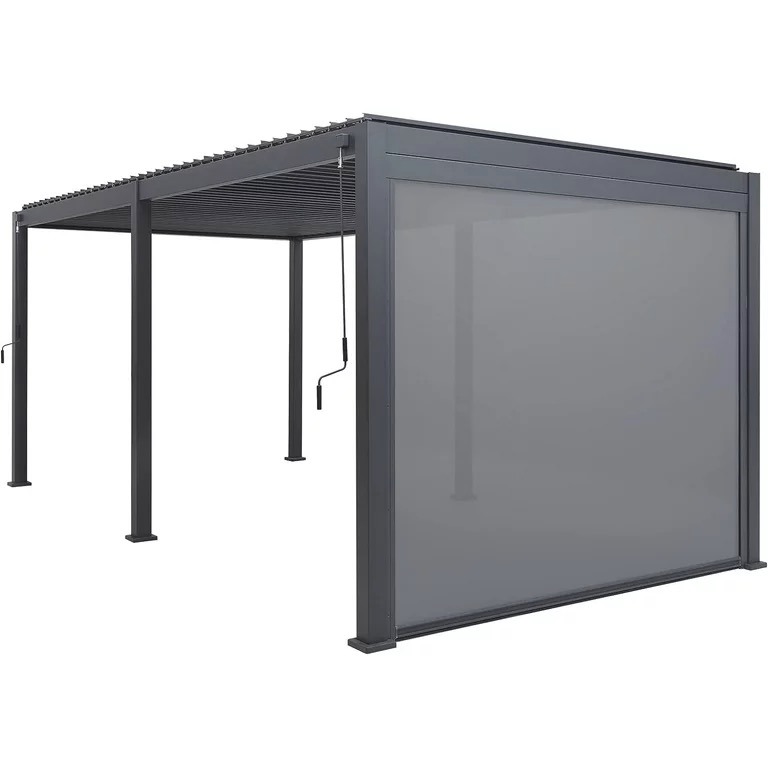

Outdoor Blinds (manual or motorised track blinds)
(Please enquire for options and pricing.)
Ordering & Production Process – Simple and Transparent
Orders are processed on a monthly production cycle to streamline efficiency and reduce costs.
To Order:
Select your configuration (manual or motorised)
Choose your colour scheme
Finalise your size and layout
Confirm order before the end-of-month cut-off to join the next manufacturing cycle
Delivery:
Delivery is charged separately to your nearest depot or direct to site (location-based rates apply).
Why Choose the Cerberus Standard Louvre System from Apollo NZ?
✅ Lifetime Manufacturing Warranty
✅ Heavy-Duty 6063-T5 Aluminium Frame
✅ 304 Stainless Steel Components (316 Upgrade Available)
✅ Integrated Gutters and Water Management
✅ Manual and Motorised Options
✅ Fully Made-to-Measure Flexibility
✅ Fixed 2.3m Height with Approx. 4m Post Spacing
✅ Built for New Zealand Weather Conditions
✅ Optional Lighting and Outdoor Blind Add-Ons
✅ Affordable, Professional-Grade Kitset Pricing
